PHYSIOTHERM-M

Diathermy

Features

  • Protection class 1, type B
  • Clear arrangement of the operating elements
  • Intuitive user guidance
  • Pulsed and continuous power output
  • Power: 5-200 watts, adjustable in 12 levels
  • Automatic power limitation for maximum safety
  • 6 treatment programs each in pulsed and continuous mode for frequent standard applications
  • Easily adjustable support arm for the emitters
  • Smooth-running castors for good maneuverability

Technical data

  • Dimensions (L/W/H): 30/40/79 cm
  • Weight: 42 kg
  • Mains connection: 230 V ±10 % or 115 V ±10 %
  • Mains frequency: 50 - 60 Hz
  • Current consumption: 4 A (at 230 V) or 7 A (at 115 V)
  • Power consumption: 700 VA
  • Operating frequency: 2450 MHz
  • Pulse operation: 1250 W
  • Pulse frequency: 1 - 50 Hz

Documents

Brochure

Product images

Accessories

Safety eyewear (microwave)

Safety eyewear for eye protection against microwave radiation. To be worn by the patient during applications in the facial area.

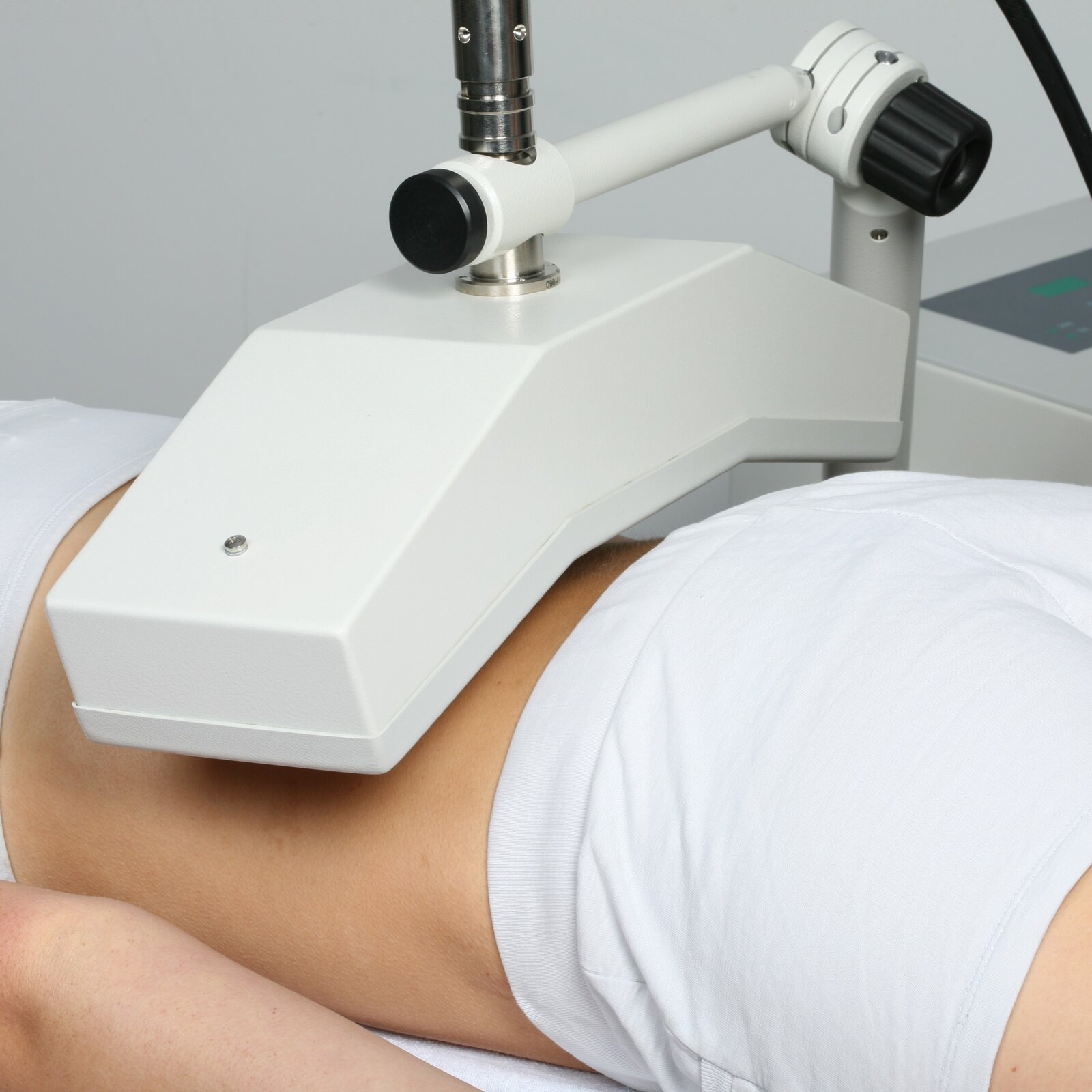

Synclinal emitter

Standard emitter for microwave application in large areas

  • Lengthx width in cm: 48x 13
  • Max. emission in W: 200
HF connection cable (microwave)

High-frequency connection cable for microwave emitters

  • Shielded cable
  • Suitable for all microwave emitters

Operating instructions

Operating manual describing function and operation of respective device. Please advise product name, serial number and language when ordering.

Mains cable

Mains cable for all line-operated PHYSIOMED devices

  • Length in cm: 300
  • Right-angle plug on unit end
  • European standard plug on mains end

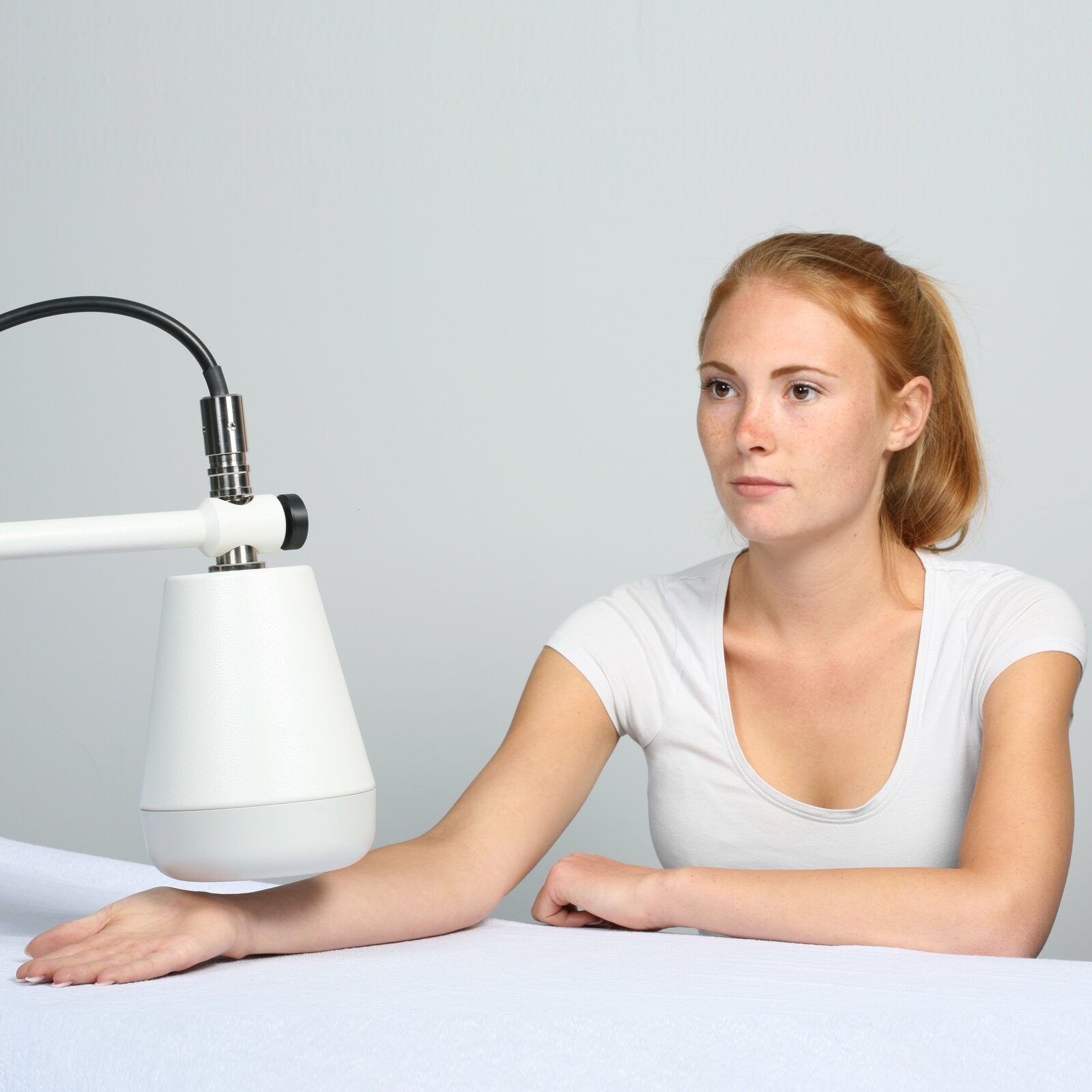

Omnidirectional emitter

Special emitter for microwave application in medium size areas

  • Diameter in cm: 16
  • Max. emission in W: 200
Small emitter

Special emitter for microwave application in small areas, especially in the ENT field

  • Diameter in cm: 6,5
  • Max. emission in W: 25

PHYSIOTHERM-M
Your advantages at a glance

  • Continuous and pulsed power output for thermal and athermal applications with automatic power limitation
  • Interference-free operation thanks to the particularly well-shielded high-frequency connection cable
  • Comprehensive overview of all therapy parameters
  • Maximum quick access to therapy
  • The smooth-running castors with locking option ensure mobility and a secure stand
  • Quick and convenient spotlight positioning thanks to the easily adjustable and fixable device arm
  • High-quality and precisely manufactured plug connections for easy replacement of the emitters
